Alkaline Water Replacement Filters

WIT :: 1-Bank "Big Blue" Sediment Ultra System

>

SUPPORT VIDEO & DOCUMENTS:

 - INSTALLATION VIDEO
 - INFORMATION SHEET
 - INSTALLATION & REPLACEMENT FILTER INSTRUCTIONS

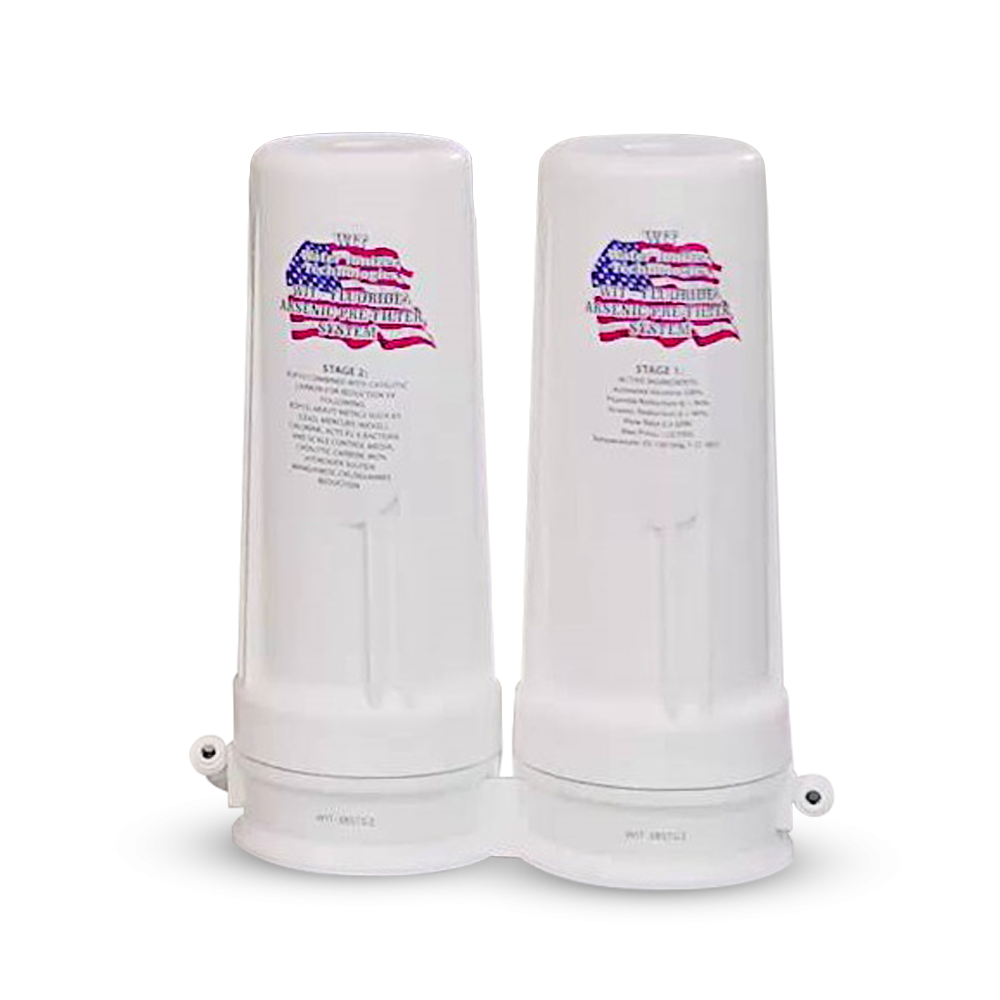

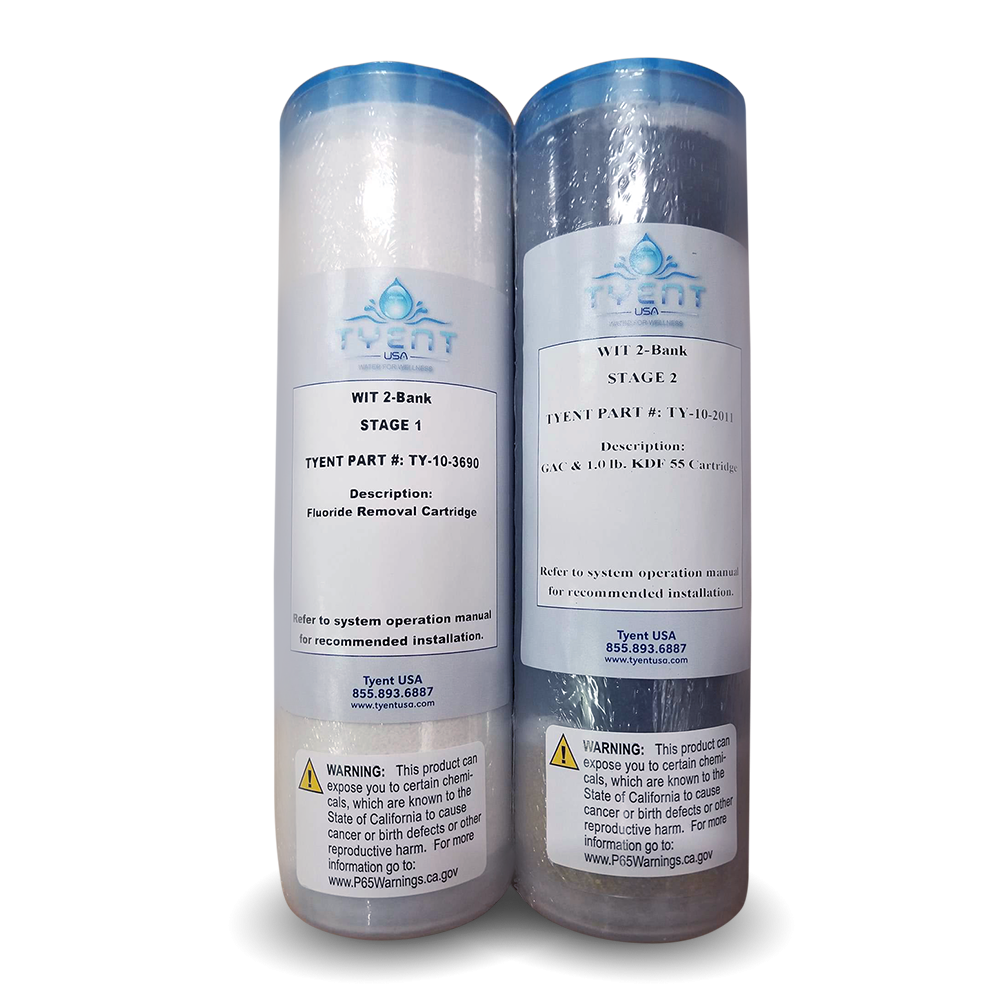

STAGE 1 FILTER:

100% ACTIVATED ALUMINA: UP TO 95% REDUCTION OF FLUORIDE.



STAGE 2 FILTER:

KDF55 COMBINED WITH CATALYTIC CARBON FOR REDUCTION OF FOLLOWING:

KDF55: HEAVY METALS SUCH AS (LEAD, MERCURY, NICKEL), CHLORINE, ACTS AS A BACTERIA AND SCALE CONTROL MEDIA.

CATALYTIC CARBON:  IRON, HYDROGEN SULFIDE, MANGANESE, CHLORAMINES REDUCTION.



IMPORTANT INSTALLATION DETAILS:

• DIMENSIONS:  10" LENGTH x 12" HIGH x 5" WIDE
• WATER FLOW THROUGH FILTER = STAGE 1 IN & STAGE 2 OUT
• FLUSH WITH 4 GALLONS OF WATER BEFORE USING



AVERAGE LIFE OF FILTERS IS 12 MONTHS
CARTRIDGES SHOULD BE REPLACED ONCE PER YEAR OR REPLACE IF FLOW BECOMES SLOW



SUPPORT VIDEO & DOCUMENTS:

 - INSTALLATION VIDEO
 - INFORMATION SHEET
 - INSTALLATION & REPLACMENT FILTER INSTRUCTIONS

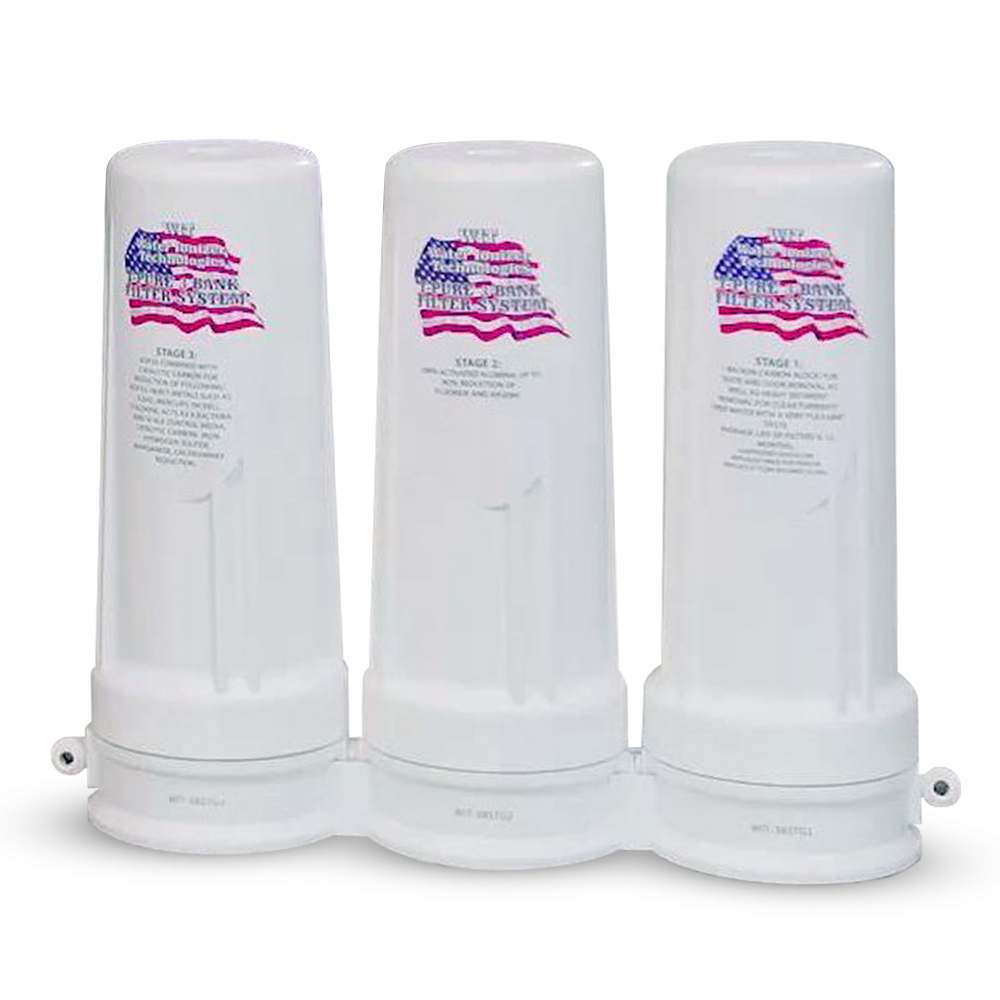

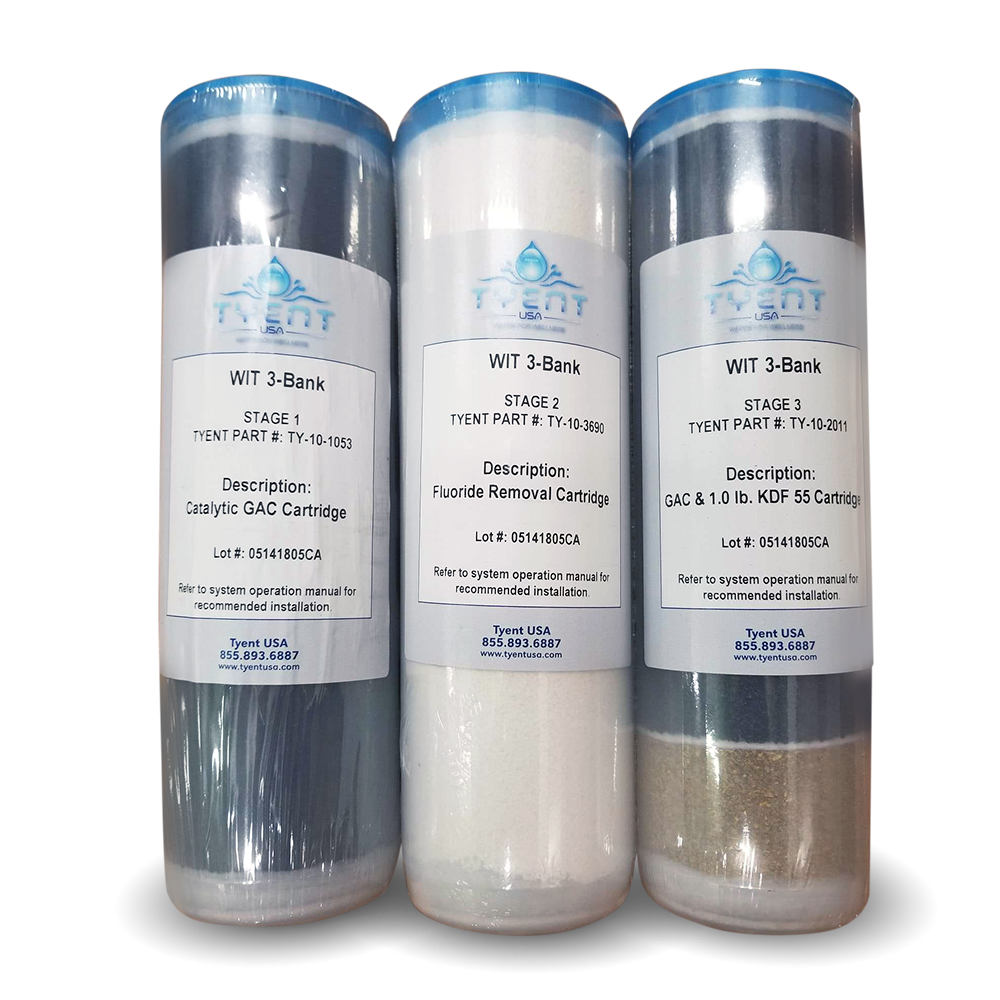

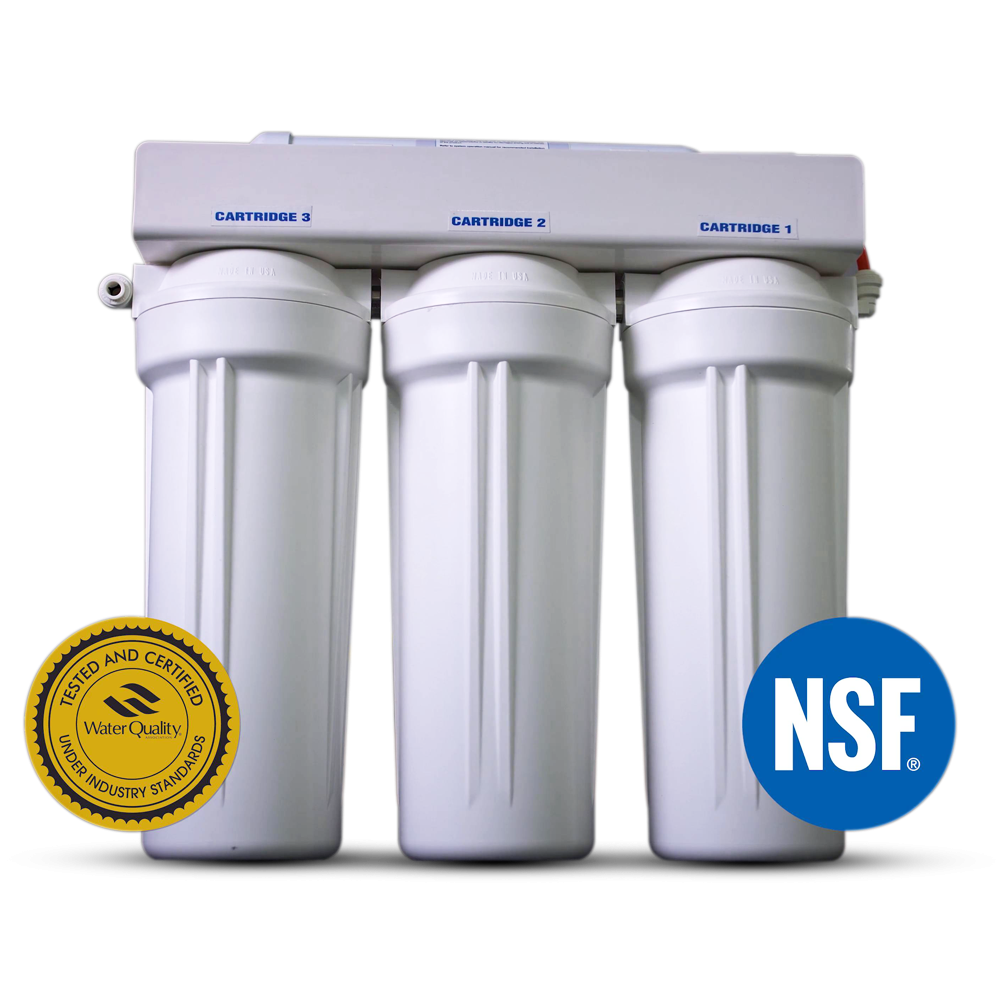

STAGE 1 FILTER:

1 MICRON CARBON BLOCK: FOR TASTE AND ODOR REMOVAL AS WELL AS HEAVY SEDIMENT REMOVAL FOR CLEAR TURBIDITY FREE WATER WITH A VERY PLEASANT TASTE.



STAGE 2 FILTER:

100% ACTIVATED ALUMINA: UP TO 95% REDUCTION OF FLUORIDE.



STAGE 3 FILTER:

KDF55 COMBINED WITH CATALYTIC CARBON FOR REDUCTION OF FOLLOWING:

KDF55: HEAVY METALS SUCH AS (LEAD, MERCURY, NICKEL), CHLORINE, ACTS AS A BACTERIA AND SCALE CONTROL MEDIA.

CATALYTIC CARBON:  IRON, HYDROGEN SULFIDE, MANGANESE, CHLORAMINES REDUCTION.



IMPORTANT INSTALLATION DETAILS:

• DIMENSIONS:  15" LENGTH x 12" HIGH x 5" WIDE
• WATER FLOW THROUGH FILTER = STAGE 1 IN & STAGE 3 OUT
• FLUSH WITH 4 GALLONS OF WATER BEFORE USING



AVERAGE LIFE OF FILTERS IS 12 MONTHS
CARTRIDGES SHOULD BE REPLACED ONCE PER YEAR OR REPLACE IF FLOW BECOMES SLOW





SUPPORT VIDEO & DOCUMENTS:

 - INSTALLATION VIDEO
 - INFORMATION SHEET
 - INSTALLATION & REPLACEMENT FILTER INSTRUCTIONS

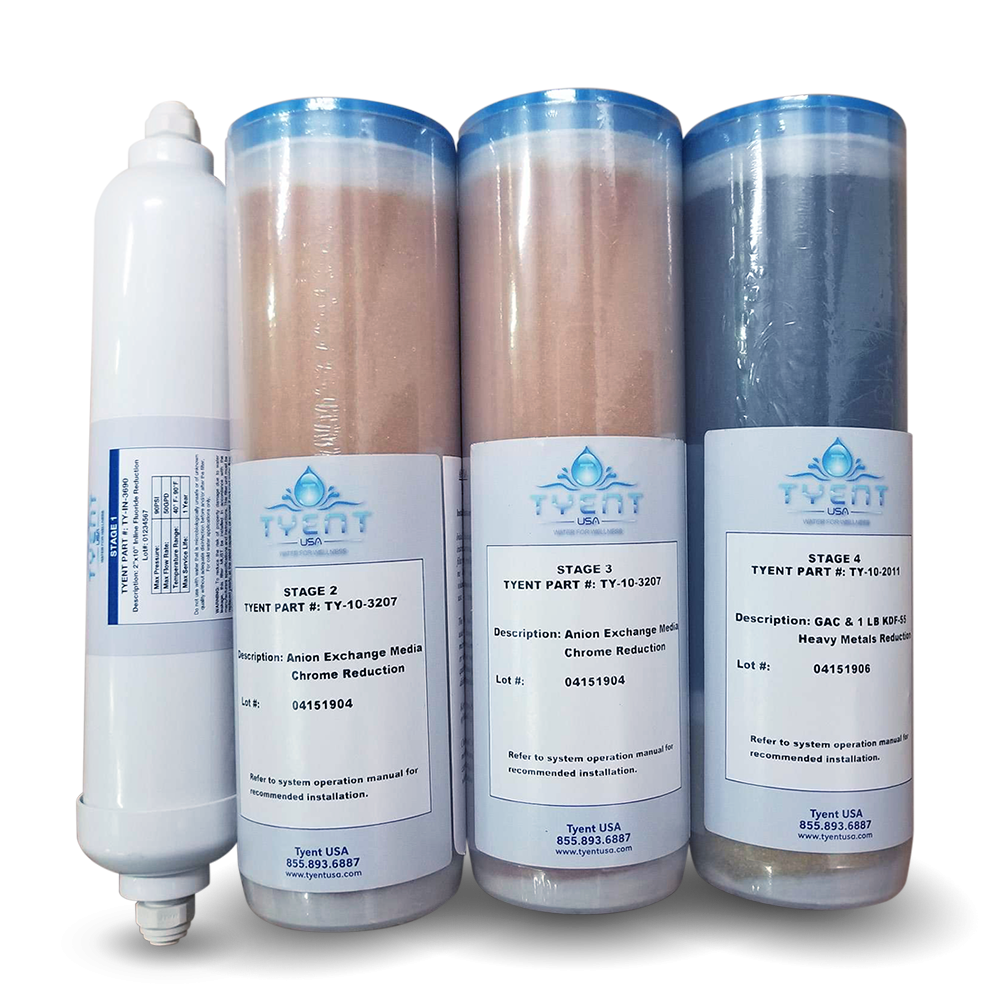

FLUORIDE PRE-FILTER:

SIR-900: A SYNTHETIC ALUMINUM OXIDE THAT IS PROCESSED TO HAVE MINIMUM FINES AND OTHER FOREIGN MATTER. CARTRIDGE REMOVES FLUORIDE BY A CHEMICAL REACTION WITH THE MEDIA. IT HAS MINIMAL SHRINKAGE/SWELLING AND LOW PRESSURE LOSS.



STAGE 1 & 2 FILTER:

STRONG ANION EXCHANGE RESIN: DESIGNED FOR THE REMOVAL OF CHROMIUM6. THIS MEDIA IS A HIGH CAPACITY, SUPPLIED IN CHLORIDE OR HYDROXIDE FORM.



STAGE 3 FILTER:

KDF55 COMBINED WITH CATALYTIC CARBON FOR REDUCTION OF FOLLOWING:

KDF55: HEAVY METALS SUCH AS (LEAD, MERCURY, NICKEL), CHLORINE, ACTS AS A BACTERIA AND SCALE CONTROL MEDIA.

CATALYTIC CARBON:  IRON, HYDROGEN SULFIDE, MANGANESE, CHLORAMINES REDUCTION.



IMPORTANT INSTALLATION DETAILS:

• DIMENSIONS:  15" LENGTH x 15" HIGH x 5" WIDE
• WATER FLOW THROUGH FILTER = FLUORIDE PRE-FILTER IN & STAGE 3 OUT
• FLUSH WITH 4 GALLONS OF WATER BEFORE USING



AVERAGE LIFE OF FILTERS IS 6 MONTHS
CARTRIDGES SHOULD BE REPLACED TWICE PER YEAR OR REPLACE IF FLOW BECOMES SLOW

WIT :: Dual Gradient ULTRA Pre-Sediment Replacement Filter (DGD-2501 - For "BIG BLUE" Housing)

SUPPORT VIDEO & DOCUMENTS:

 - INSTALLATION VIDEO
 - INFORMATION SHEET
 - INSTALLATION & REPLACMENT FILTER INSTRUCTIONS



STAGE 1 FILTER:

100% ACTIVATED ALUMINA: UP TO 95% REDUCTION OF FLUORIDE AND ARSENIC.



STAGE 2 FILTER:

KDF55 COMBINED WITH CATALYTIC CARBON FOR REDUCTION OF FOLLOWING:

KDF55: HEAVY METALS SUCH AS (LEAD, MERCURY, NICKEL), CHLORINE, ACTS AS A BACTERIA AND SCALE CONTROL MEDIA.

CATALYTIC CARBON:  IRON, HYDROGEN SULFIDE, MANGANESE, CHLORAMINES REDUCTION.



IMPORTANT INSTALLATION DETAILS:

• DIMENSIONS:  10" LENGTH x 12" HIGH x 5" WIDE
• WATER FLOW THROUGH FILTER = STAGE 1 IN & STAGE 2 OUT
• FLUSH WITH 4 GALLONS OF WATER BEFORE USING



AVERAGE LIFE OF FILTERS IS 12 MONTHS
CARTRIDGES SHOULD BE REPLACED ONCE PER YEAR OR REPLACE IF FLOW BECOMES SLOW

SUPPORT VIDEO & DOCUMENTS:

 - INSTALLTION VIDEO
 - INFORMATION SHEET
 - INSTALLATION & REPLACMENT FILTER INSTRUCTIONS



STAGE 1 FILTER:

1 MICRON CARBON BLOCK: FOR TASTE AND ODOR REMOVAL AS WELL AS HEAVY SEDIMENT REMOVAL FOR CLEAR TURBIDITY FREE WATER WITH A VERY PLEASANT TASTE.



STAGE 2 FILTER:

100% ACTIVATED ALUMINA: UP TO 95% REDUCTION OF FLUORIDE AND ARSENIC.



STAGE 3 FILTER:

KDF55 COMBINED WITH CATALYTIC CARBON FOR REDUCTION OF FOLLOWING:

KDF55: HEAVY METALS SUCH AS (LEAD, MERCURY, NICKEL), CHLORINE, ACTS AS A BACTERIA AND SCALE CONTROL MEDIA.

CATALYTIC CARBON:  IRON, HYDROGEN SULFIDE, MANGANESE, CHLORAMINES REDUCTION.



IMPORTANT INSTALLATION DETAILS:

• DIMENSIONS:  15" LENGTH x 12" HIGH x 5" WIDE
• WATER FLOW THROUGH FILTER = STAGE 1 IN & STAGE 3 OUT
• FLUSH WITH 4 GALLONS OF WATER BEFORE USING



AVERAGE LIFE OF FILTERS IS 12 MONTHS
CARTRIDGES SHOULD BE REPLACED ONCE PER YEAR OR REPLACE IF FLOW BECOMES SLOW

SUPPORT VIDEO & DOCUMENTS:

 - INSTALLTION VIDEO
 - INFORMATION SHEET
 - INSTALLATION & REPLACMENT FILTER INSTRUCTIONS



FLUORIDE PRE-FILTER:

SIR-900: A SYNTHETIC ALUMINUM OXIDE THAT IS PROCESSED TO HAVE MINIMUM FINES AND OTHER FOREIGN MATTER. CARTRIDGE REMOVES FLUORIDE BY A CHEMICAL REACTION WITH THE MEDIA. IT HAS MINIMAL SHRINKAGE/SWELLING AND LOW PRESSURE LOSS.



STAGE 1 & 2 FILTER:

STRONG ANION EXCHANGE RESIN: DESIGNED FOR THE REMOVAL OF CHROMIUM6. THIS MEDIA IS A HIGH CAPACITY, SUPPLIED IN CHLORIDE OR HYDROXIDE FORM.



STAGE 3 FILTER:

KDF55 COMBINED WITH CATALYTIC CARBON FOR REDUCTION OF FOLLOWING:

KDF55: HEAVY METALS SUCH AS (LEAD, MERCURY, NICKEL), CHLORINE, ACTS AS A BACTERIA AND SCALE CONTROL MEDIA.

CATALYTIC CARBON:  IRON, HYDROGEN SULFIDE, MANGANESE, CHLORAMINES REDUCTION.



IMPORTANT INSTALLATION DETAILS:

• DIMENSIONS:  15" LENGTH x 15" HIGH x 5" WIDE
• WATER FLOW THROUGH FILTER = FLUORIDE PRE-FILTER IN & STAGE 3 OUT
• FLUSH WITH 4 GALLONS OF WATER BEFORE USING



AVERAGE LIFE OF FILTERS IS 6 MONTHS
CARTRIDGES SHOULD BE REPLACED TWICE PER YEAR OR REPLACE IF FLOW BECOMES SLOW

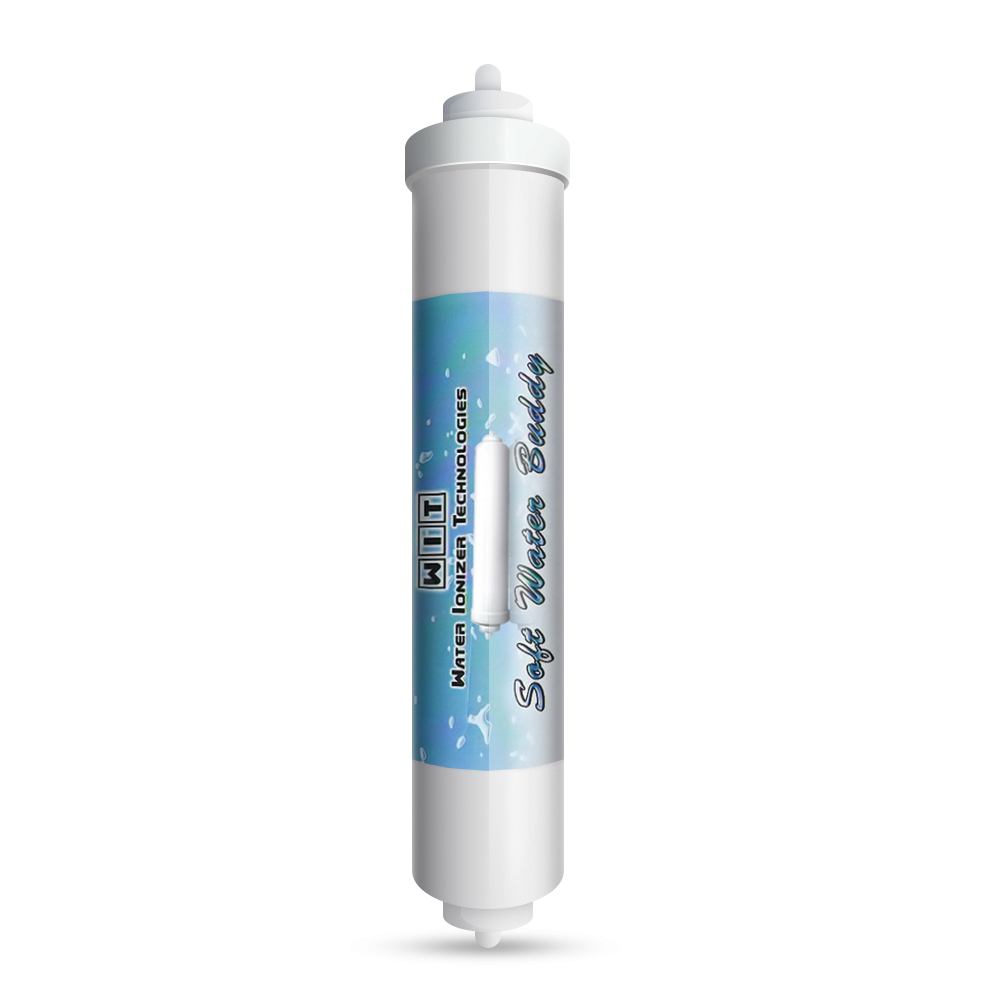

A soft water buddy is a remineralizing filter for people who have or use a water softener, for hard water and especially for people who have a reverse osmosis unit.

Ingredients of filtration media consists of 50% Calcite and 50% Corosex.

Calcite is a crushed and screened white marble media which can be used to neutralize acidic or low pH waters to a neutral, less corrosive effluent.

Clack Corosex® is a specially processed hard, bead-like magnesia adapted for use in filters to neutralize acidity by increasing the pH value.

Tested to NSF/ANSI 14 and NSF/ANSI 61 Standards

INSTALLATION INSTRUCTIONS

1. Remove the plugs at each end of the filter by pressing down on the flange around the outside of each port at the ends of the filter.
2. You can then install your 1/4 inch hose in each end. Be sure that the flow direction arrow is pointing towards the input side of the unit. The flow direction is there to show you how the water flows through the filter.
3. During the installation process, be sure to flush filter with water to check flow and remove any sediment in filter and to activate filter media before connecting to ionizer.
4. Replace every 6 months.

---

INSTALL VIDEO

---

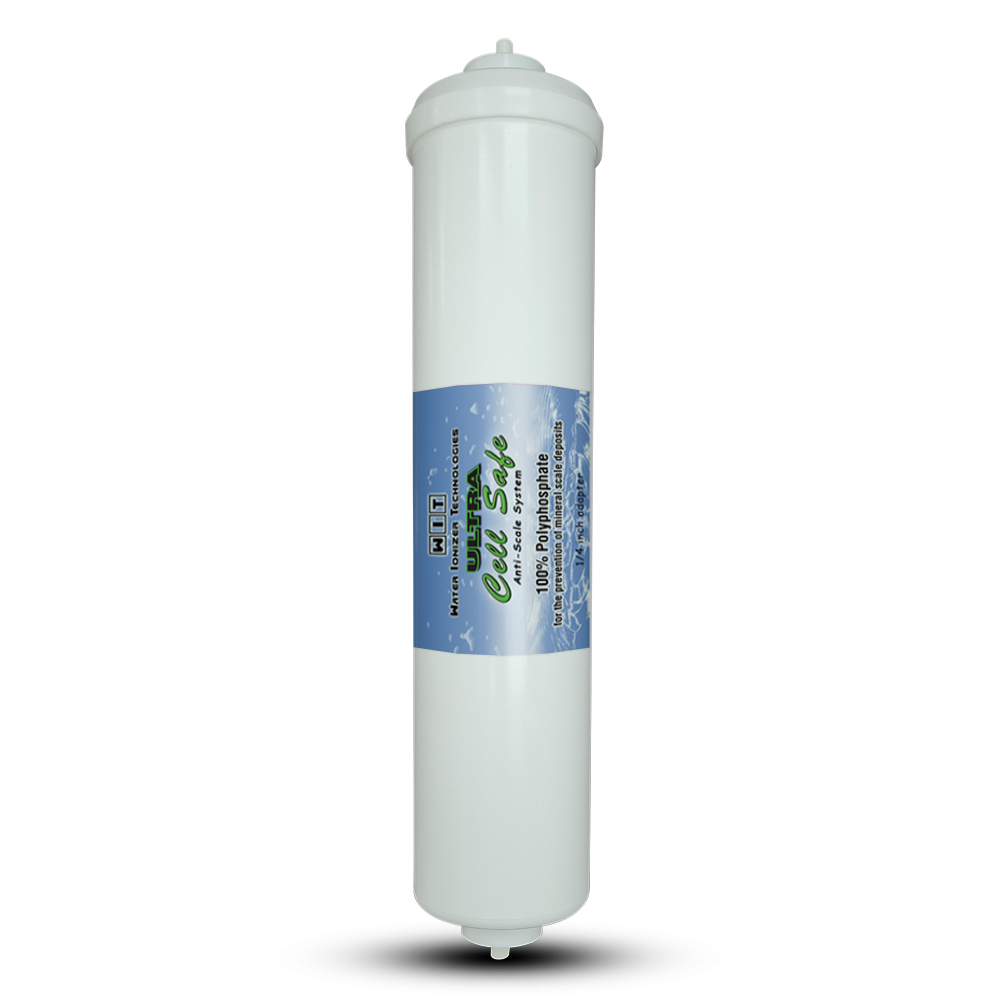

Cell Safe (™) is an inline filter that helps eliminate scale build up. It is very easy to conceal and does not require a canister/housing. This composite pre-filter not only prevents scaling, but it actually eliminates scale build-up, thereby improving the health and longevity of your Ionizer. If you have hard water this is a must have.

---

INSTALL VIDEO

---



All ionizers are subject to clogging from sediment found in source waters and decaying plumbing which can cause the units to mal-function. This can lead to unwanted repairs which can be prevented. The Tyent Pre-sediment filter will trap all dust and sediment before it reaches the ionizer.

1. PROTECTS AND PROLONGS INTERNAL FILTER LIFE. 2. PROTECTS INTERNAL COMPONENTS FROM CLOGGING. 3. CONNECTS DIRECTLY TO ¼” WATER LINES WITH QUICK DISCONNECT FITTINGS. 4. EASY INSTALLATION.

Installation: 1. Note flow direction filter label. 2. Install tubing into IN position. 3. Flush filter with 1 gal. water. 4. Connect OUT tubing. 5. Check for leaks.

---

INSTALL VIDEO

---
